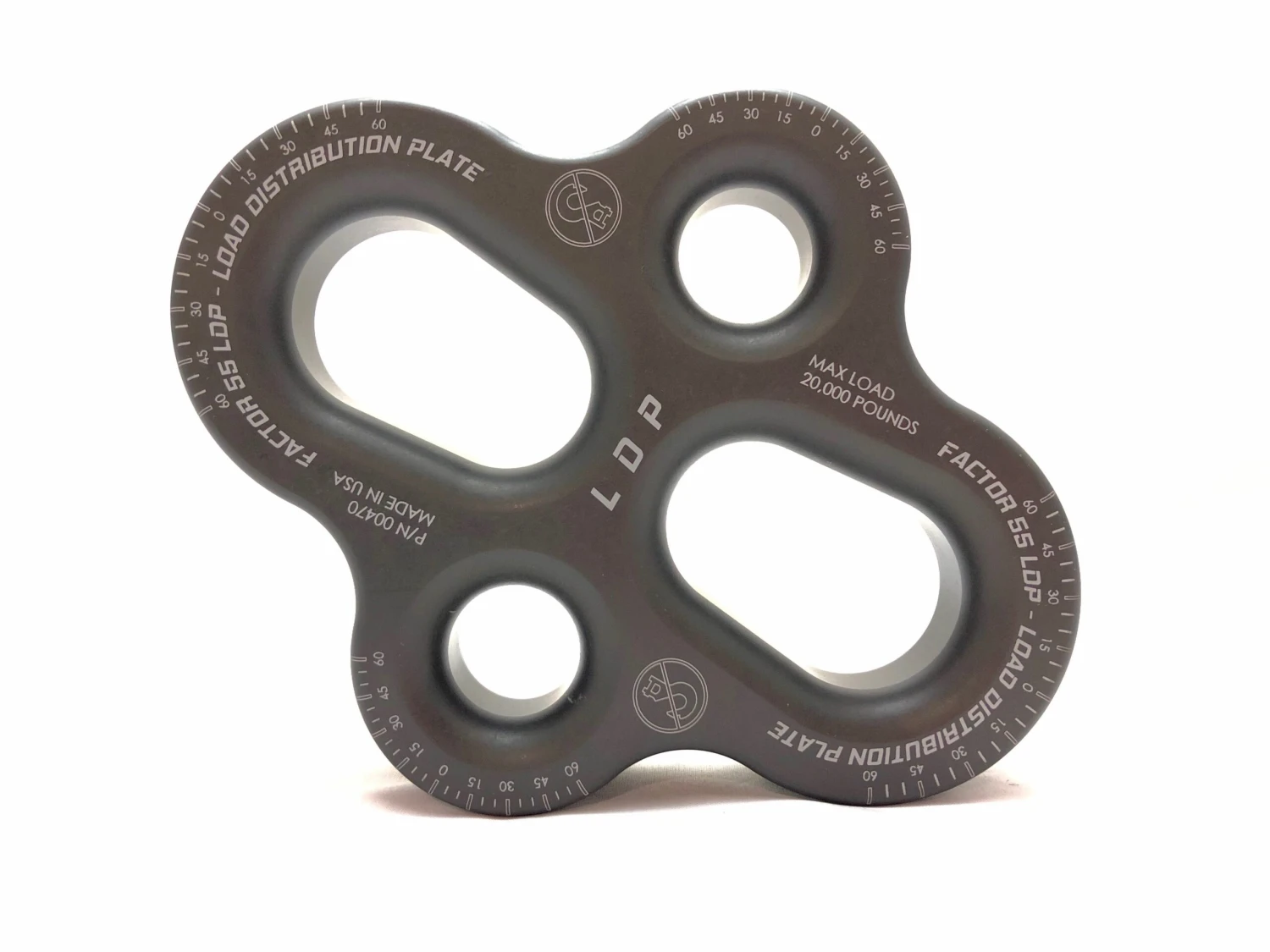

Factor55 Load Distribution Plate



LOAD DISTRIBUTION PLATE – LDP

• Rigging plate designed for distribution of multiple loads and directions

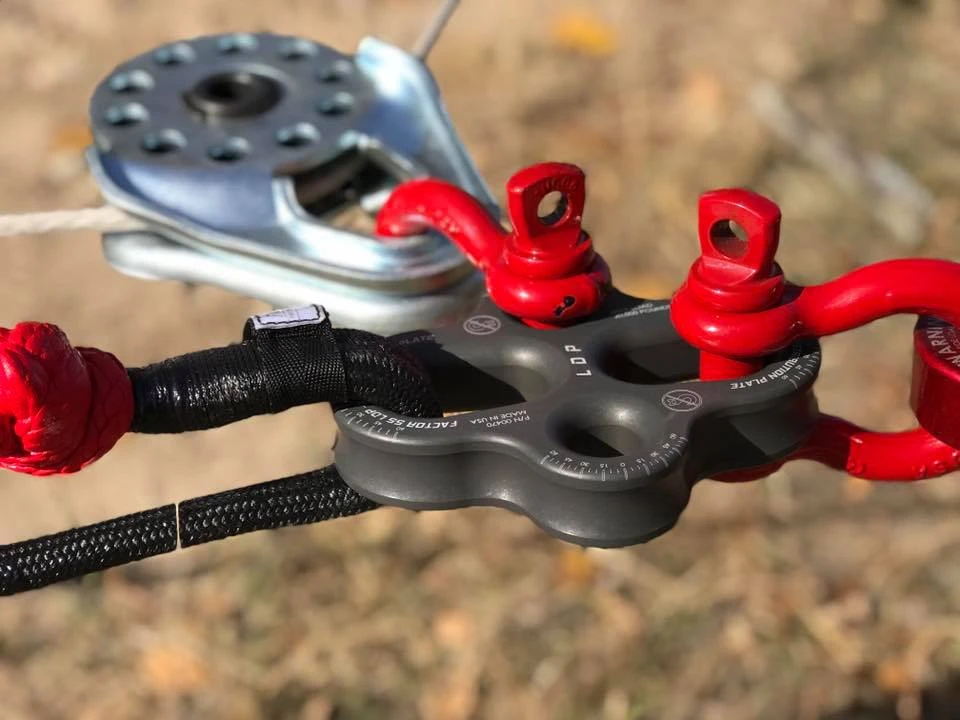

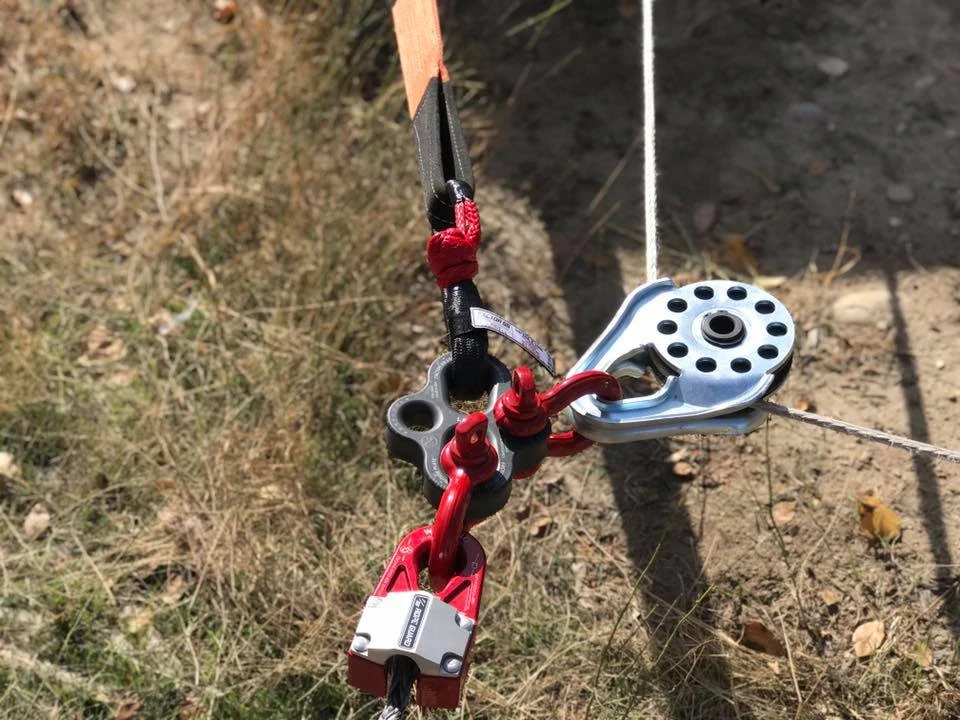

• Safe collection point for multiple winching applications
• Prevents collecting multiple loads on a single shackle
• Self-aligning shackle pin holes fit common ¾ shackles
• Pear shaped holes permit ¾ and 7/8 shackle bodies to pass through
• Laser engraved angle scale for sling multiplier estimates
• Symmetric shape allows for common bridle tow configurations
• Large smooth corner radii for soft shackle applications
• Precision machined from 6000 series Military Grade Aluminum
• Engineered, Tested, and Made In The USA
• Military Specification Hard Anodized finish ( Mil-A-8625 F Type III Gray)
• Working Load Limit 20,000 pounds
• Minimum Breaking Strength 42,000 pounds
• Weight – 26 ounces

• Weight	1.8 lbs
  Dimensions	7.5 × 5 × 2 in
